Sorbothane Anti-Vibration Leveling Mount - 2 Pack


Price:
Sale price$61.95

Description

Note on how our part numbers work:

Using the part number 0510510-70-10 for the 1/4-20 thread 2" dia Anti-Vibration Leveling Mount as an example, the first part, 0510510, corresponds to the product and differs based on the measurements and product type. The middle part, 70, refers to the durometer. The end, 10, is used by our manufacturer and means that the product's color is black. All IsolateIT products are black, so IsolateIT part numbers do not end in 10. Instead the end of the part number refers to the quantity, such as 4 for a 4-pack.

Anti-Vibration Leveling Mounts

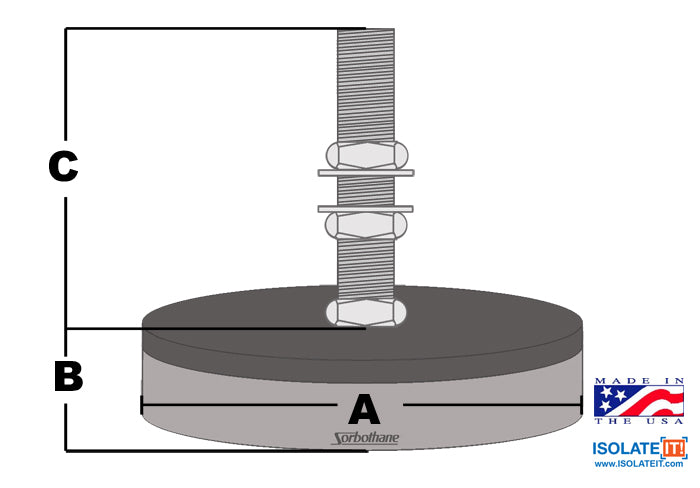

Part Number Thread Diameter Thickness Minus Shank Shank Length Duro / Durometer Load Rating # of unit per pack

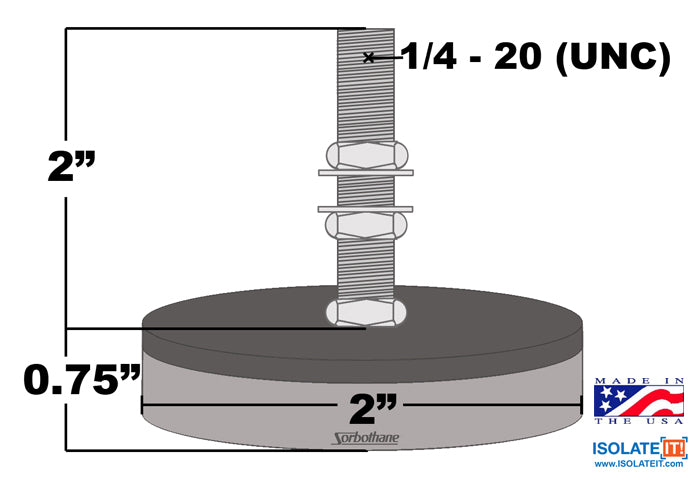

0510510-70-10 1/4-20 2.00” 0.75” 1.875” 70 60-150lbs 2
0510505-70-10 1/4-20 2.25” 0.75” 1.875” 70 100-225lbs 2

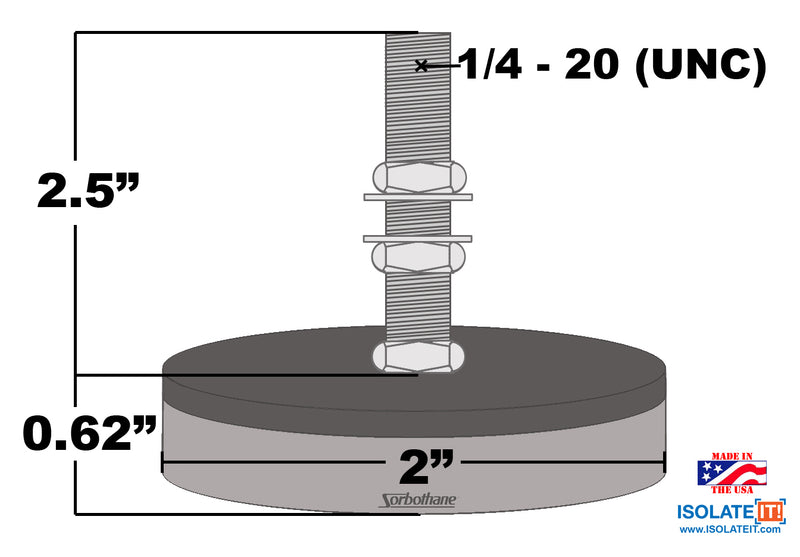

0510515-70-10 1/4-20 2.50” 0.62” 1.875” 70 175-400lbs 2

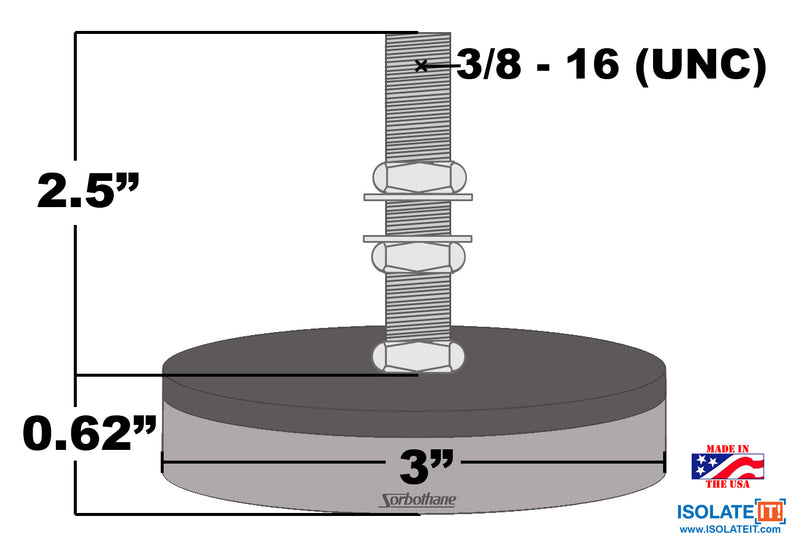

0510520-70-10 3/8-16 2.50” 0.62” 2.875” 70 175-400lbs 2
0510530-70-10 3/8-16 3.50” 0.88” 2.875” 70 350-750lbs 2

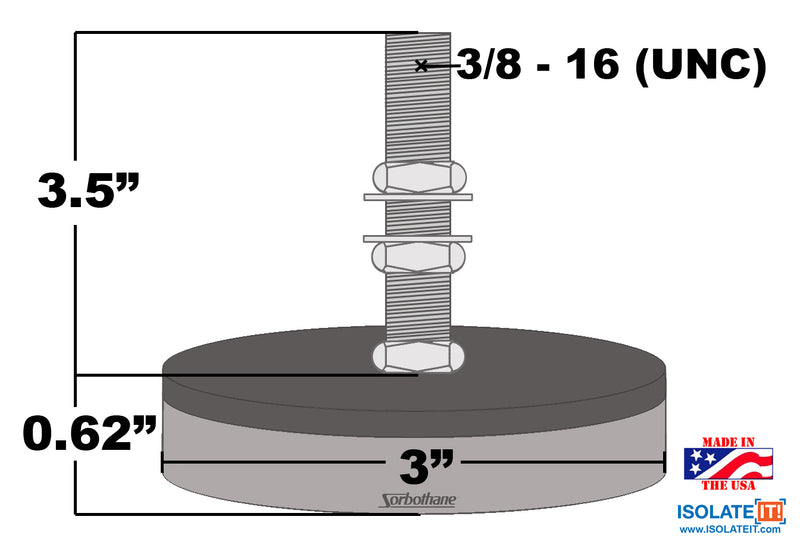

0510525-70-10 3/8-16 3.50” 0.62” 2.875” 70 750-1700lbs 2
