Sorbothane Anti-Vibration Leveling Mount - 2 Pack

IsolateitSKU: 0510510-70-2

Diameter: 2"
Thread: 1/4-20
Stud Length: 2"
Sale price$61.95

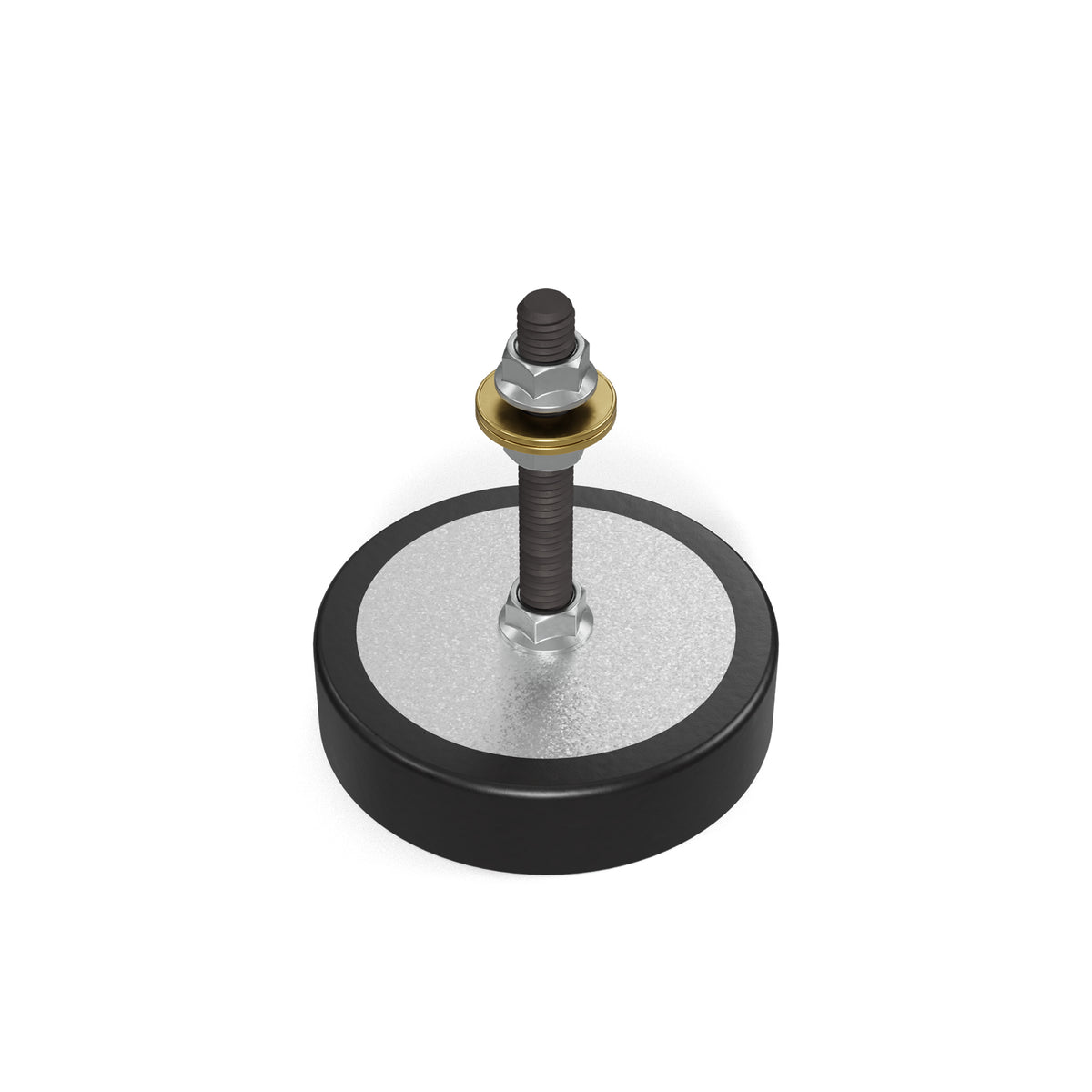

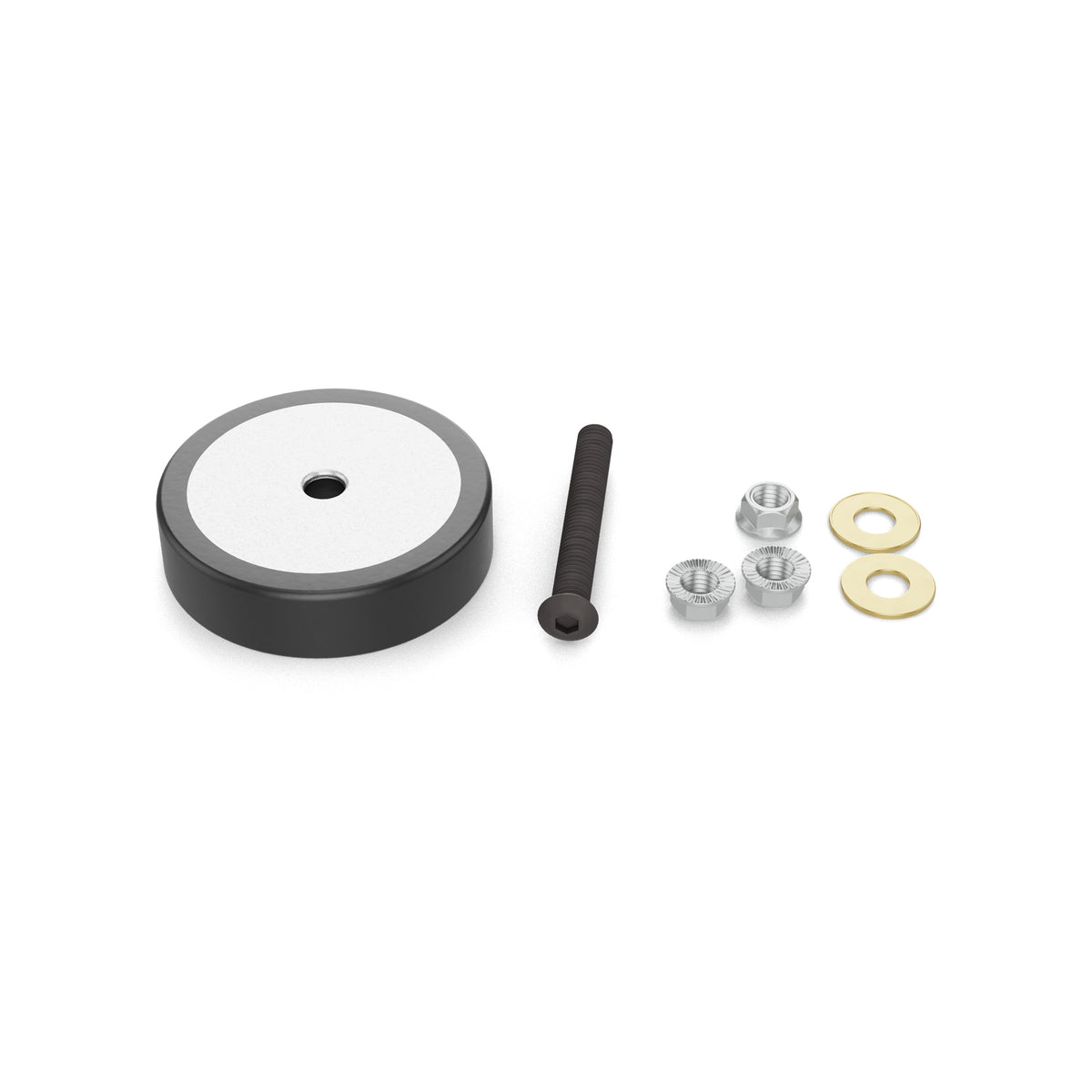

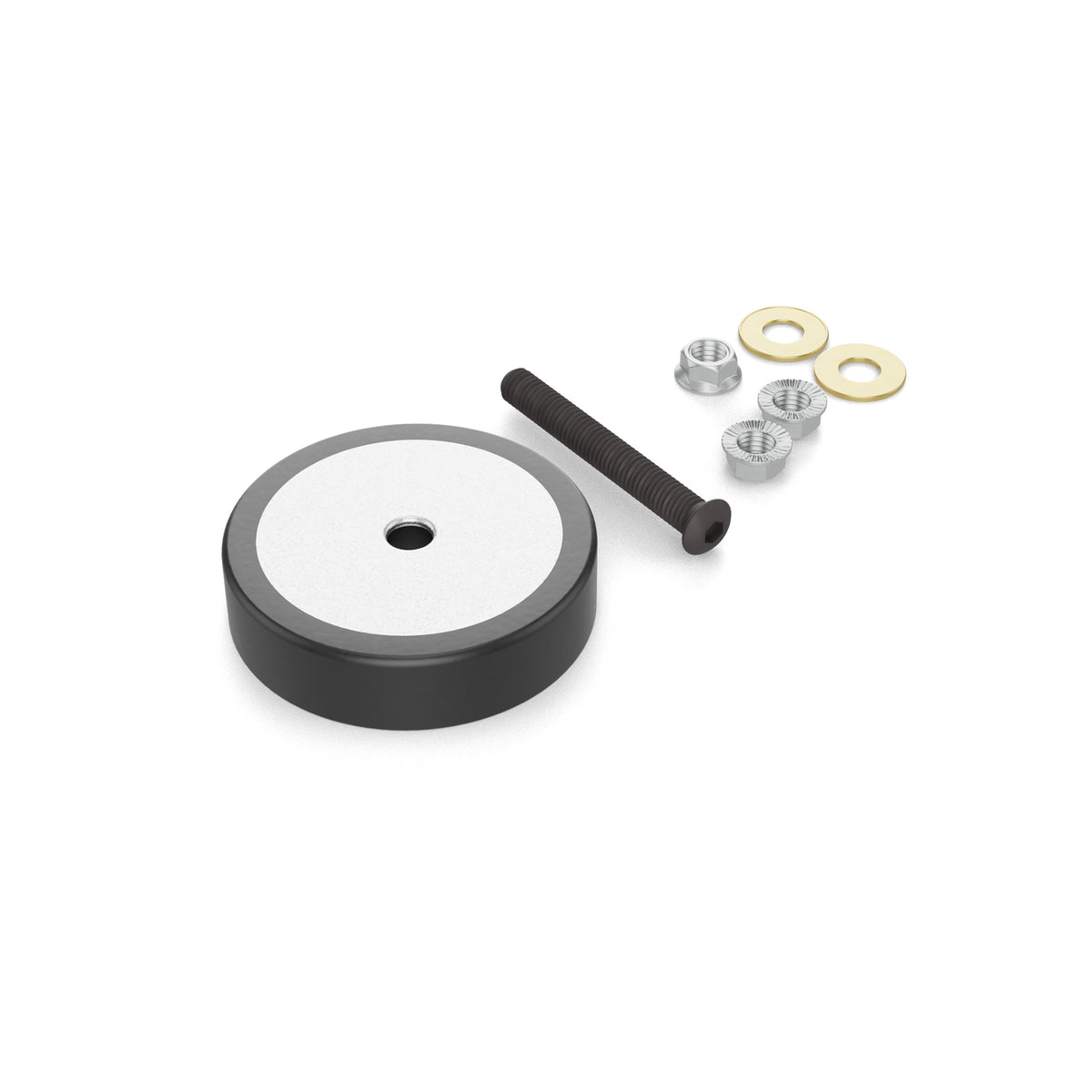

These are leveling mounts and sold as a 2 pad kit. Each mount features a threaded stud captured in a metal plate with Sorbothane anti-vibration rubber bonded to the bottom surface of the mount. These kits include fastening nuts and washers.

These ultra-high quality anti-vibration mounts are designed to provide the best vibration reduction possible. Each mount is comprised of high-quality fasteners and industry-leading Sorbothane visco-elastic polymer. The unique vibration damping properties allow it to behave like a fluid but retain its shape for millions of cycles, far exceeding the limits of other materials like silicone, rubber, and neoprene. These mounts are designed for compression applications where very low shear force is present. When installing use high-quality thread deforming lock nuts or double jam nuts to ensure that your connections do not vibrate loose. Not recommended for high amplitude vibrations. This product contains plasticizers and may cause discoloration to materials that are in contact with it for extended periods of time. Made in the USA from US materials.
Metal-Sorbothane studs are available in three standard sizes that utilize both UNC and metric threads. Other UNC threads and Metric threads are available by specials orders.

Installation: Simply screw the mount onto the item. Thread lock, lock nuts, jam nuts, or other locking fasteners are recommended to keep the mount from vibrating loose.

This product contains plasticizers and may cause discoloration to wood.

Note on how our part numbers work:

Using part number 0510510-70-10 for the 1/4-20 thread 2" dia Anti-Vibration Leveling Mount as an example, the first part, 0510510, corresponds to the product and differs based on the measurements and product type. The middle part, 70, refers to the durometer. The end, 10, is used by our manufacturer and means that the product's color is black. All IsolateIT products are black, so IsolateIT part numbers do not end in 10. Instead, the end of the part number refers to the quantity, such as 4 for a 4-pack.

Anti-Vibration Leveling Mounts

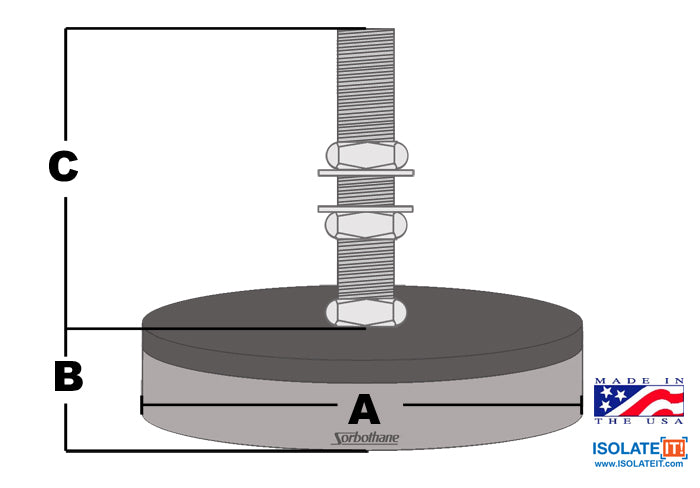

Part Number Thread Diameter Thickness Minus Shank Shank Length Duro / Durometer Load Rating # of unit per pack

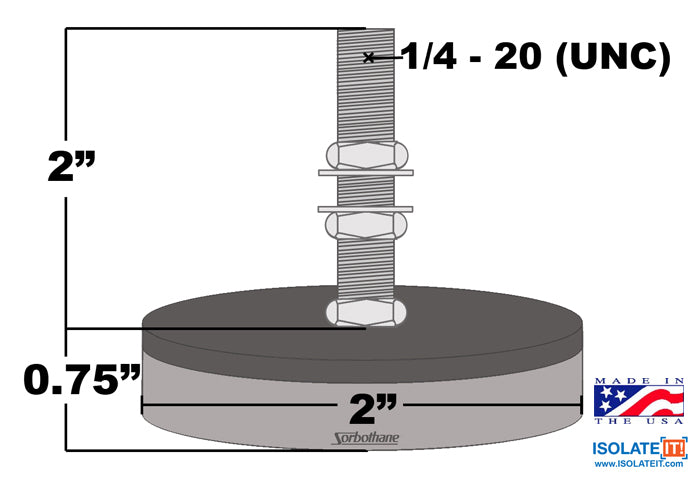

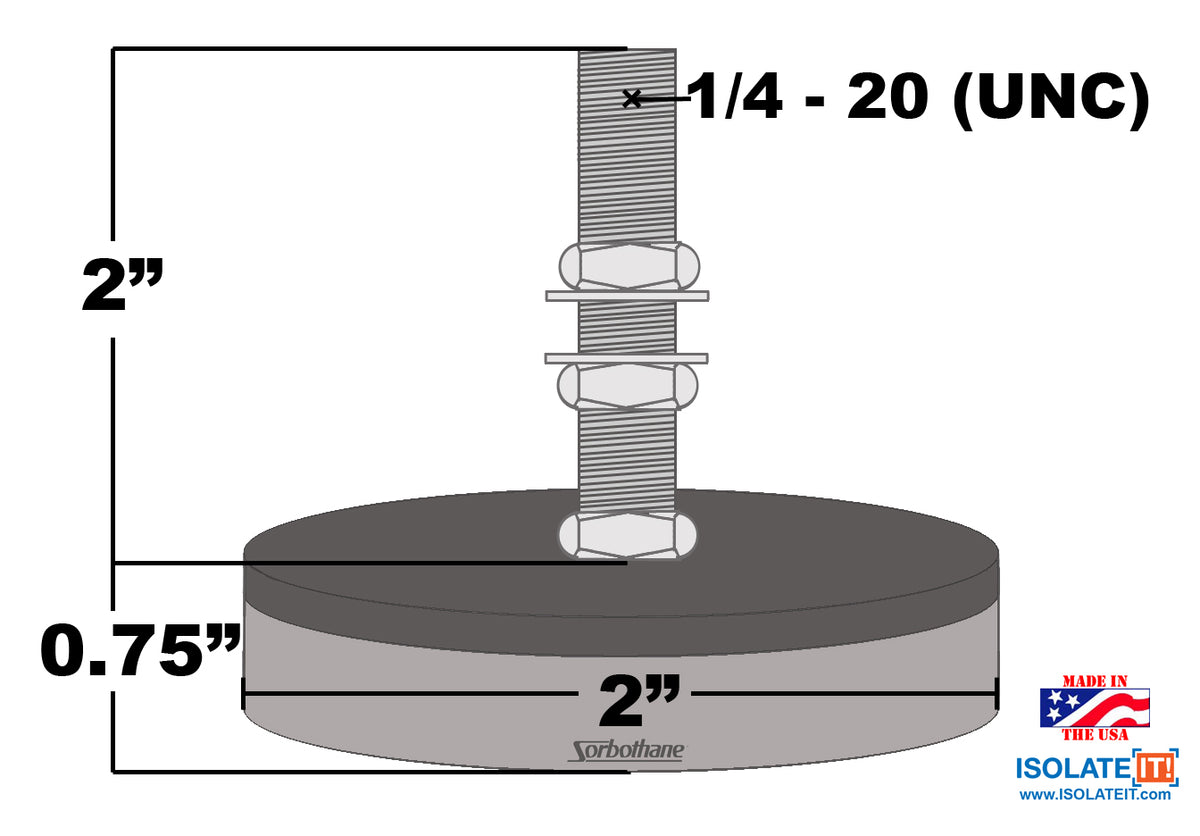

0510510-70-10 1/4-20 2.00” 0.75” 1.875” 70 60-150lbs 2
0510505-70-10 1/4-20 2.25” 0.75” 1.875” 70 100-225lbs 2

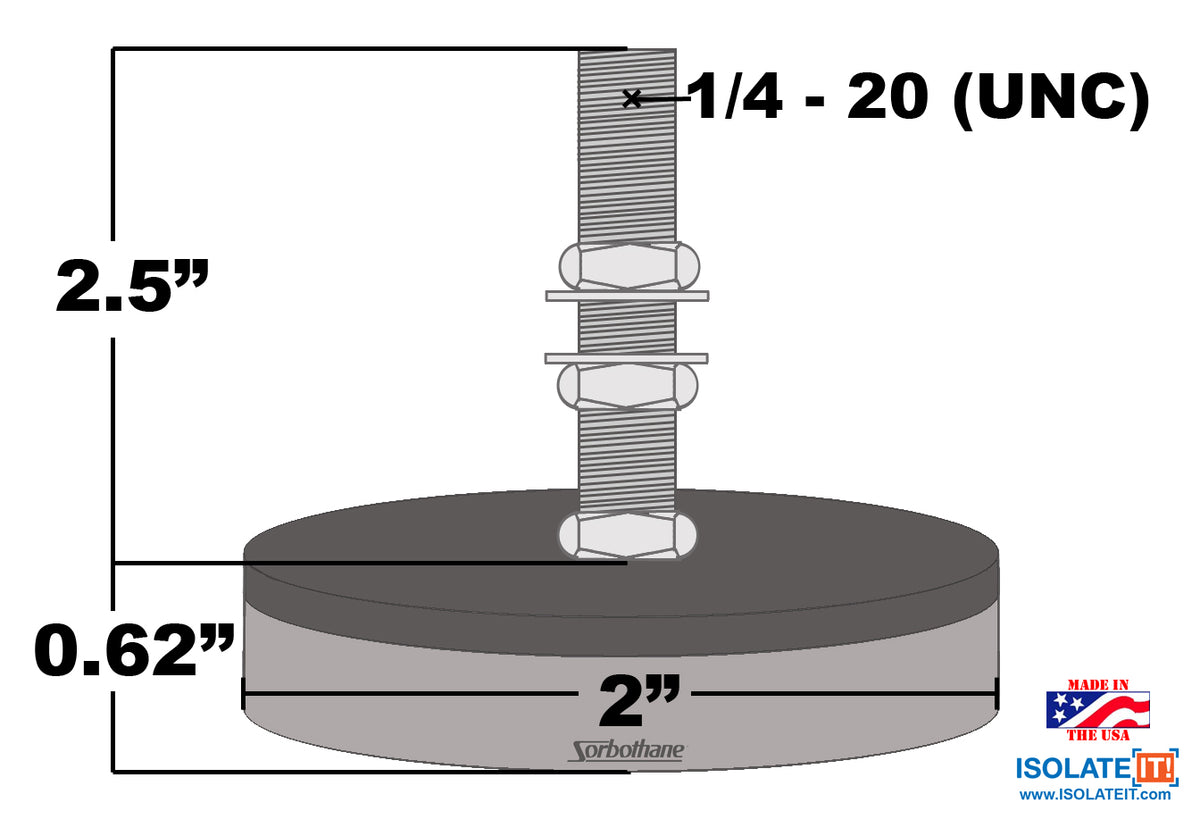

0510515-70-10 1/4-20 2.50” 0.62” 1.875” 70 175-400lbs 2

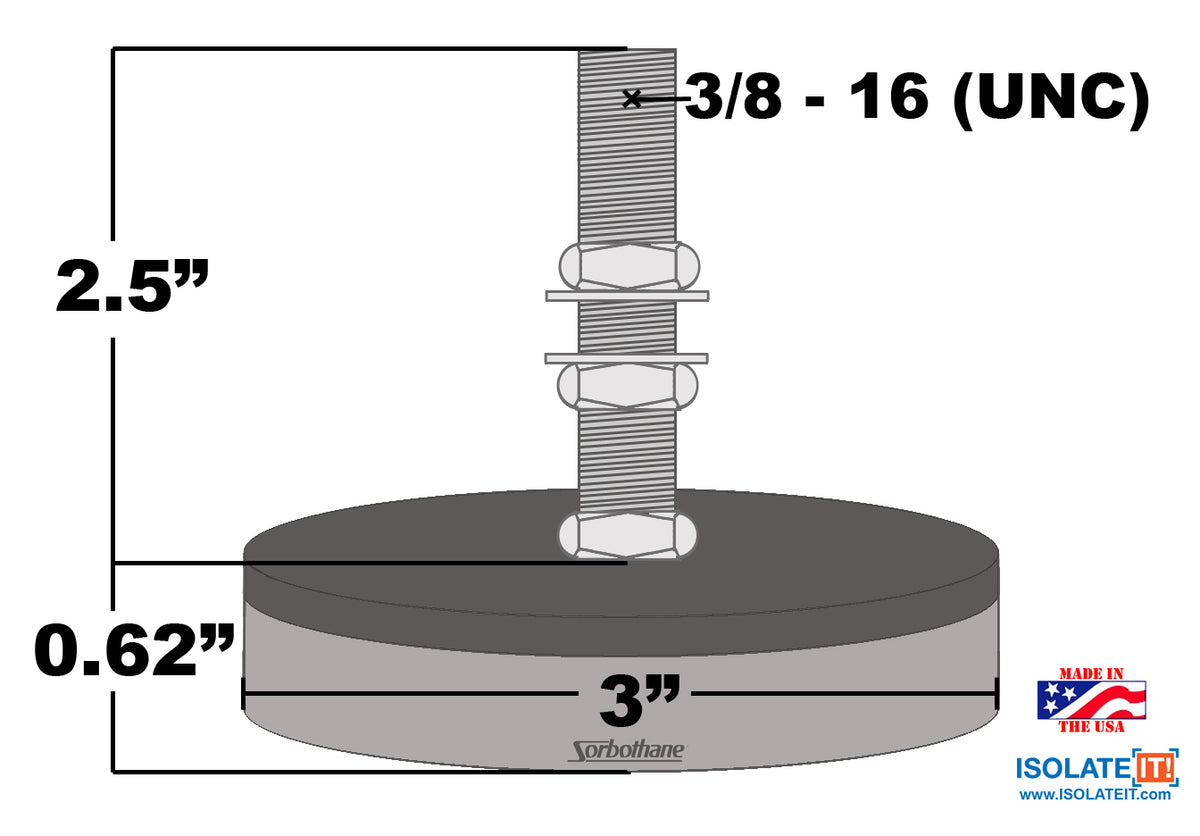

0510520-70-10 3/8-16 2.50” 0.62” 2.875” 70 175-400lbs 2
0510530-70-10 3/8-16 3.50” 0.88” 2.875” 70 350-750lbs 2

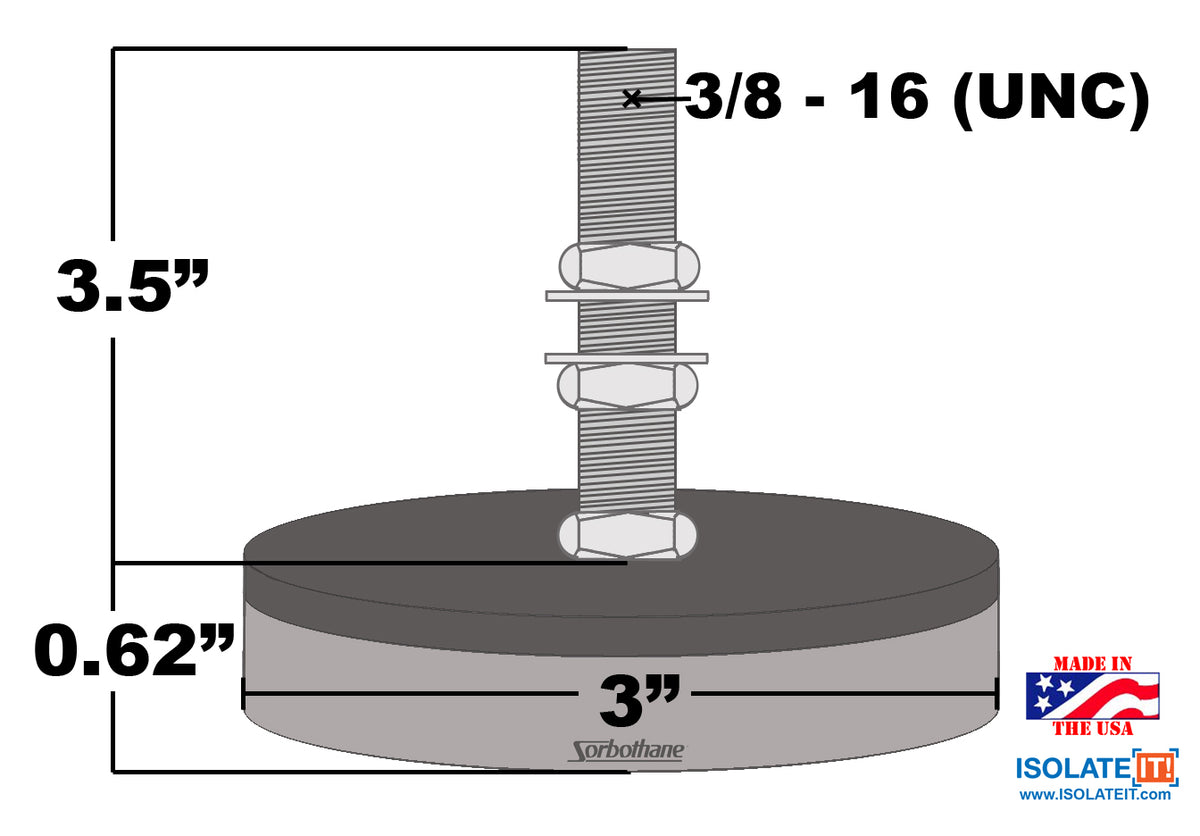

0510525-70-10 3/8-16 3.50” 0.62” 2.875” 70 750-1700lbs 2
