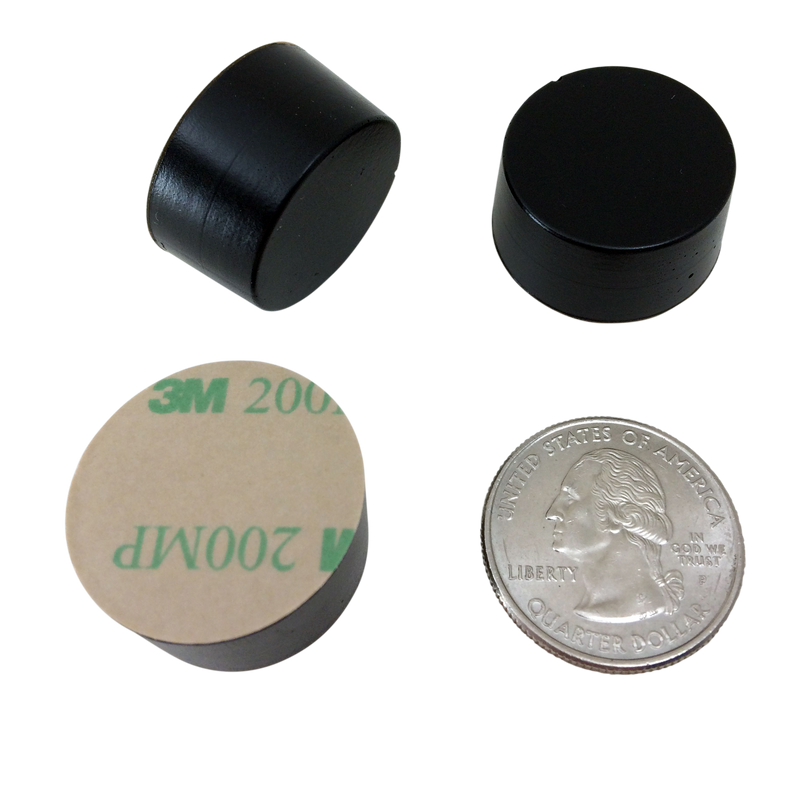

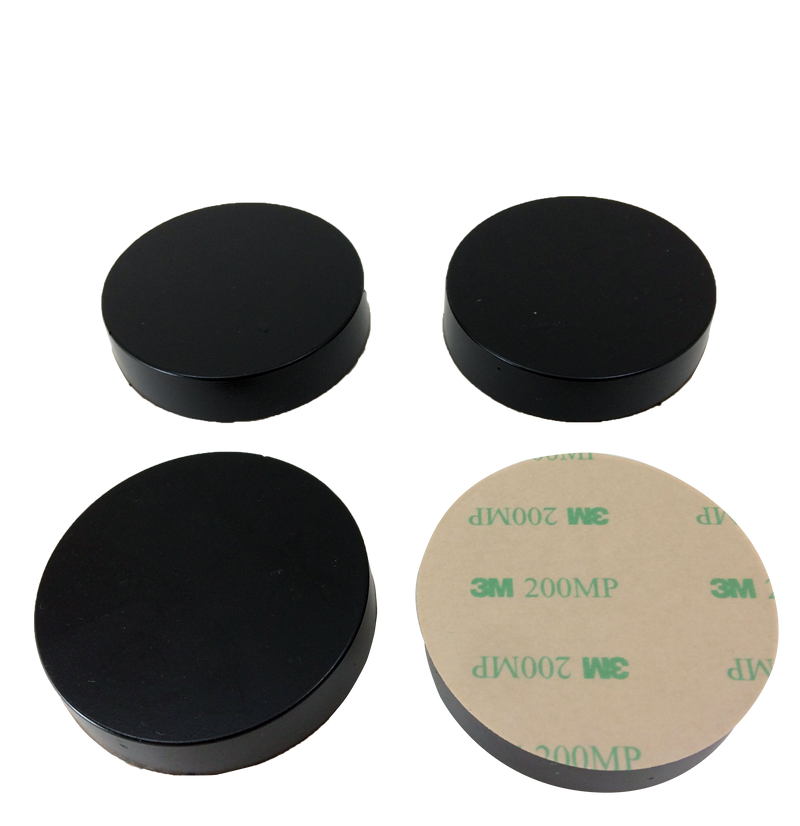

Sorbothane Vibration Isolation Circular Pad - Discs with Adhesive

Isolate It! SKU: 0531026-30-8

Diameter: 1"
Thickness: 0.25"
Duro: 30
Price:
Sale price$26.95

Description

Isolate It! Sorbothane® vibration Isolation Discs can support a wide range of loads. Select the correct thickness, durometer, and the number of discs required for the load.


Note on how our part numbers work:

Using the part number 0531026-30-10 for the 1" dia 0.25" thick Isolation Disc as an example, the first part, 0531026, corresponds to the product and differs based on the measurements and product type. The middle part, 30, refers to the durometer. The end, 10, is used by our manufacturer and means that the product's color is black. All IsolateIT products are black, so IsolateIT part numbers do not end in 10. Instead, the end of the part number refers to the quantity, such as 4 for a 4-pack.


Part Number Diameter Thickness Duro / Durometer Load Rating Per Disc PSA # of units per pack
0531026-30-10 1” 0.25” 30 2.5-4.5lbs Yes 8
0531026-50-10 1” 0.25” 50 6.5-14.5lbs Yes 8
0531026-70-10 1” 0.25” 70 30-65lbs Yes 8
0531051-30-10 1” 0.50” 30 1-2.4lbs Yes 8
0531051-50-10 1” 0.50” 50 3.5-7lbs Yes 8
0531051-70-10 1” 0.50” 70 14.35lbs Yes 8
0531526-30-10 1.5” 0.25” 30 9-20lbs Yes 8
0531526-50-10 1.5” 0.25” 50 27-60lbs Yes 8
0531526-70-10 1.5” 0.25” 70 120-280lbs Yes 8
0531551-30-10 1.5” 0.50” 30 3.5-7.5lbs Yes 4
0531551-50-10 1.5” 0.50” 50 10-23lbs Yes 4
0531551-70-10 1.5” 0.50” 70 45-110lbs Yes 4
0510436-30-10 2.25” 0.25” 30 40-90lbs Yes 4
0510436-50-10 2.25” 0.25” 50 120-270lbs Yes 4
0510436-70-10 2.25” 0.25” 70 530-1320lbs Yes 4
0532351-30-10 2.25” 0.50” 30 13-29lbs Yes 4
0532351-50-10 2.25” 0.50” 50 40-85lbs Yes 4
0532351-70-10 2.25” 0.50” 70 170-415lbs Yes 4
