Sorbothane Vibration Isolation Washer with Adhesive

IsolateitSKU: 0510003-70-8

Thickness: 0.19" -- 4.826mm
Duro - Durometer (30=Softest 70 =Firmest): 70
Inside Diameter: .45" / 1.143cm
Sale price$32.95

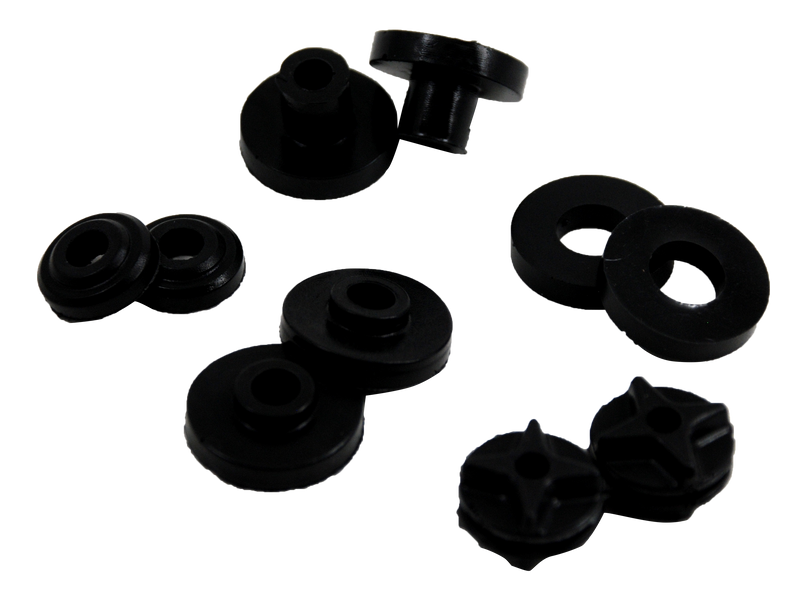

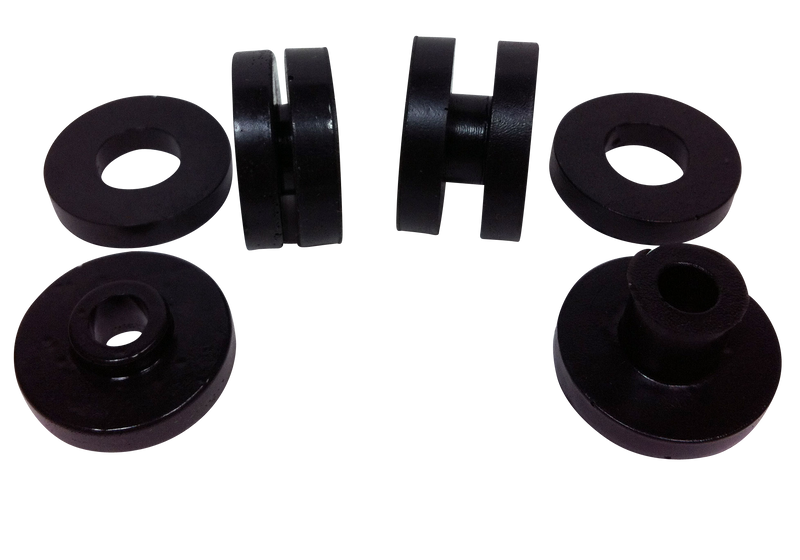

Sorbothane vibration isolators are versatile spacers that can be used as feet, stops and protectors in many applications. The unique Sorbothane urethane is a durable, resilient, polymer that provides outstanding vibration isolation and non-skid properties. Sorbothane isolators help absorb impact and noise and have excellent resistance to aging; they will not harden or crack over time. They feature a smooth, clean, black raw Sorbothane surface. The 0510001 washers can be combined with Sorbothane bushing 0510002 or 0510005 to create a complete bushing. Together these combinations allow for mounting points, circuit boards, brackets, and other fastening points to be fully isolated or "floated" for maximum vibration isolation.

Note on how our part numbers work:

Using part number 0510020-50-10 for the 0.5" OD 0.13" ID 0.13" thick Isolation Washer as an example, the first part, 0510020, corresponds to the product and differs based on the measurements and product type. The middle part, 50, refers to the durometer. The end, 10, is used by our manufacturer and means that the product's color is black. All IsolateIT products are black, so IsolateIT part numbers do not end in 10. Instead, the end of the part number refers to the quantity, such as 4 for a 4-pack.

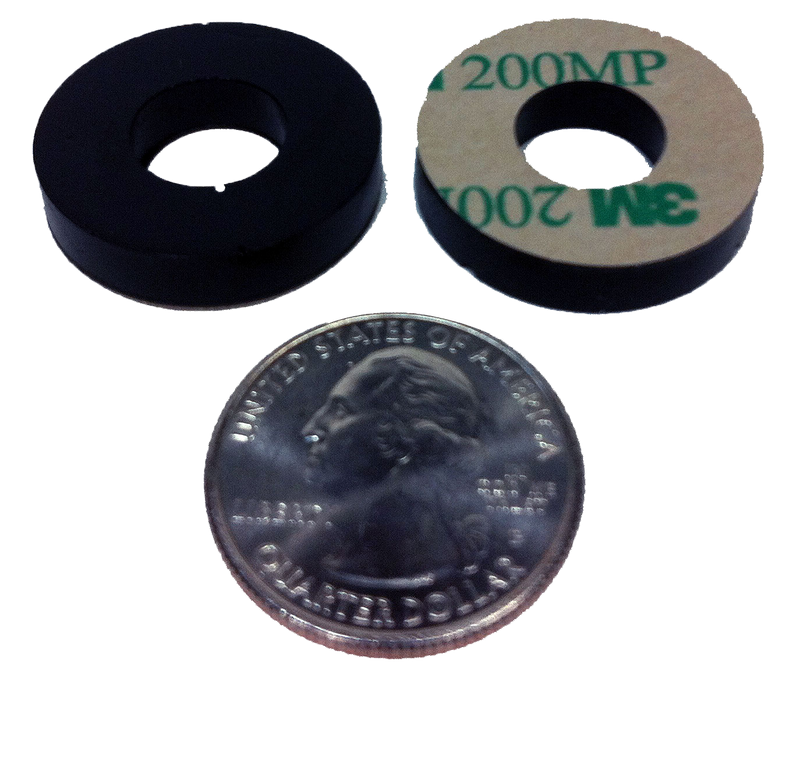

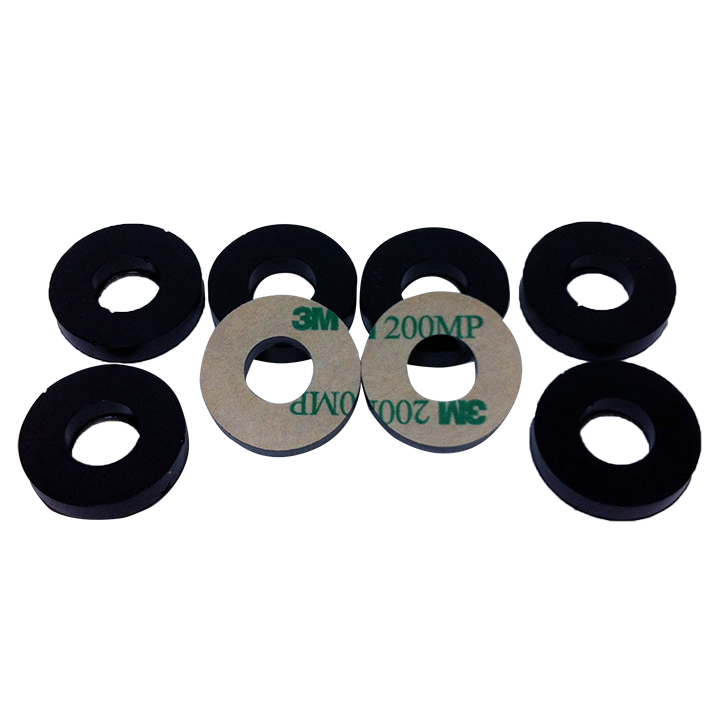

Isolation Washers with Adhesive

This washer is available in 30, 50, and 70 durometers (Shore OO).

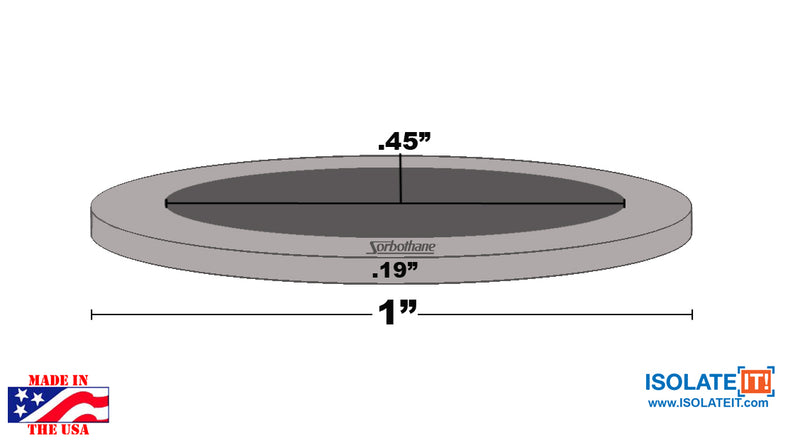

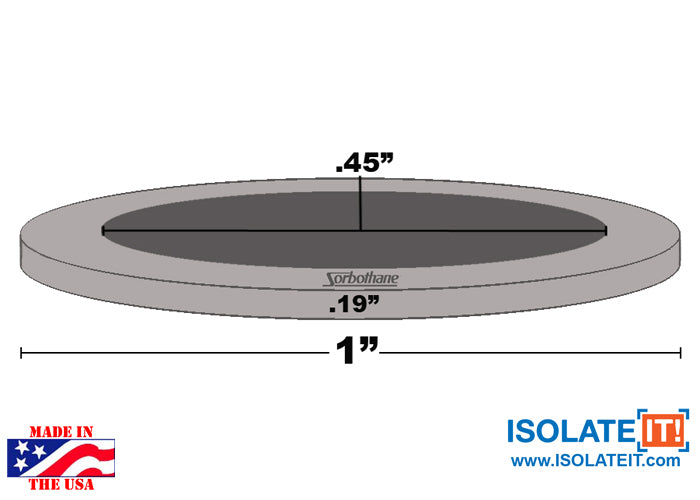

Outside Diameter: 1"

Inside Diameter: 0.45"

Thickness: 0.19"

Load Ratings:

0510003-30-10 - 1-2lbs

0510003-50-10 - 3.5-8lbs

0510003-70-10 - 15-35lbs

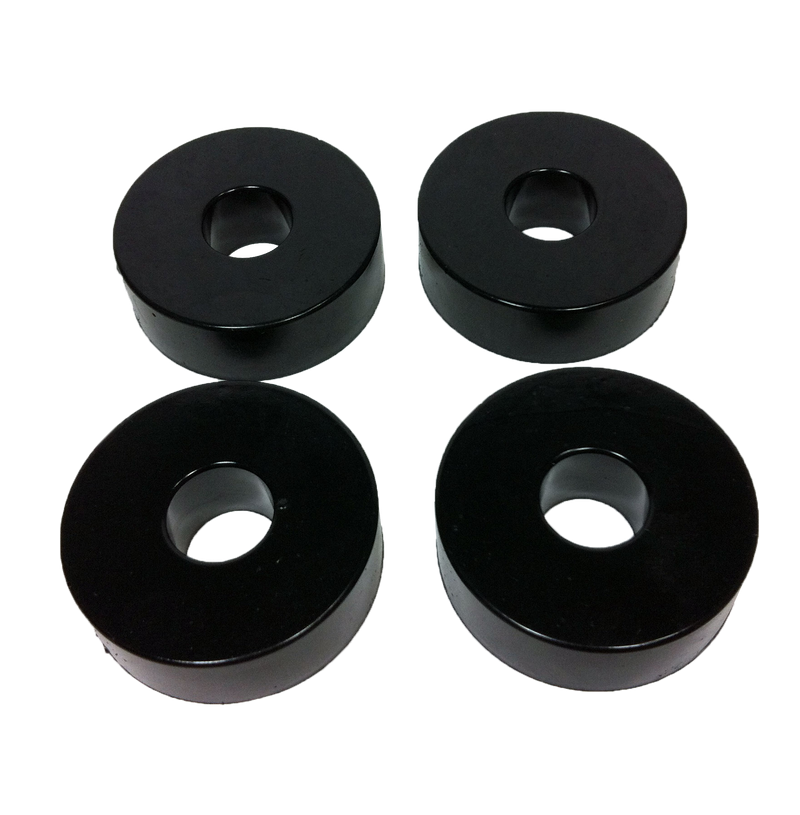

Outside Diameter: 1.5"

Inside Diameter: 0.5"

Thickness: 0.5"

Load Ratings:

0510051-30-10 - 2-4lbs

0510051-50-10 - 6-14lbs

0510051-70-10 - 30-65lbs
