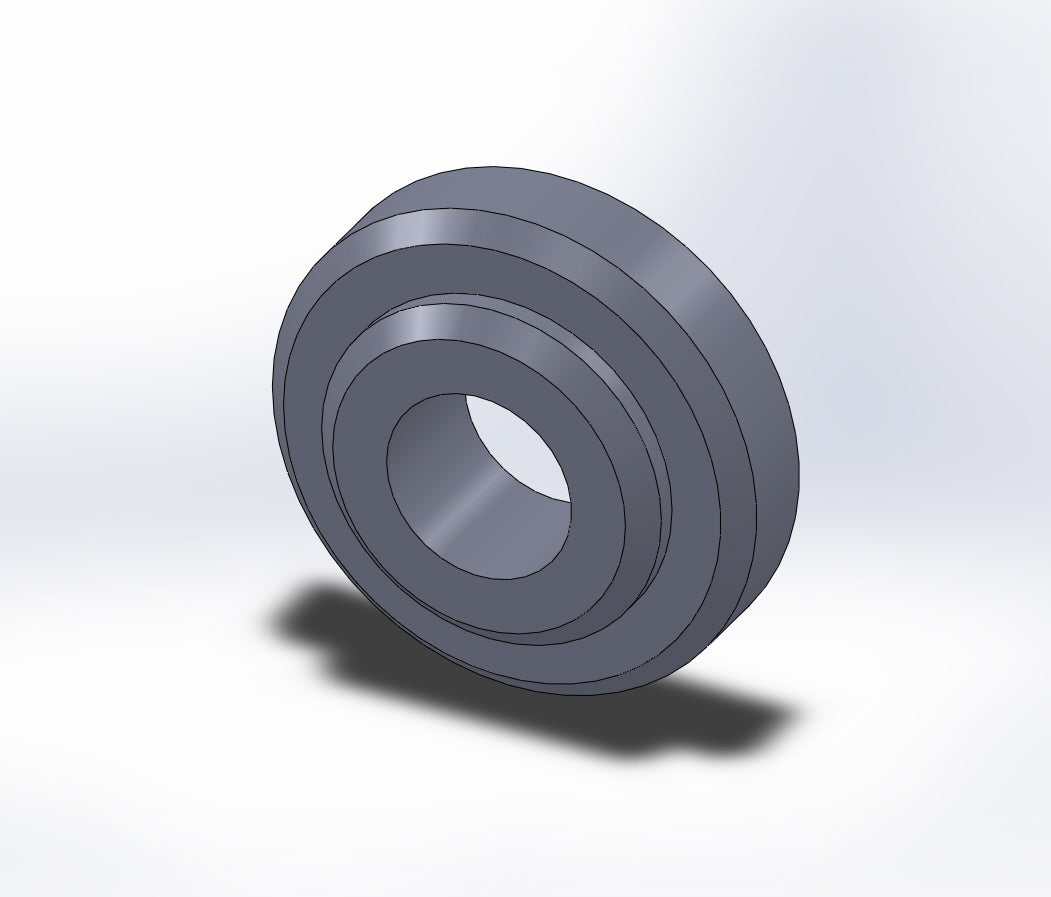

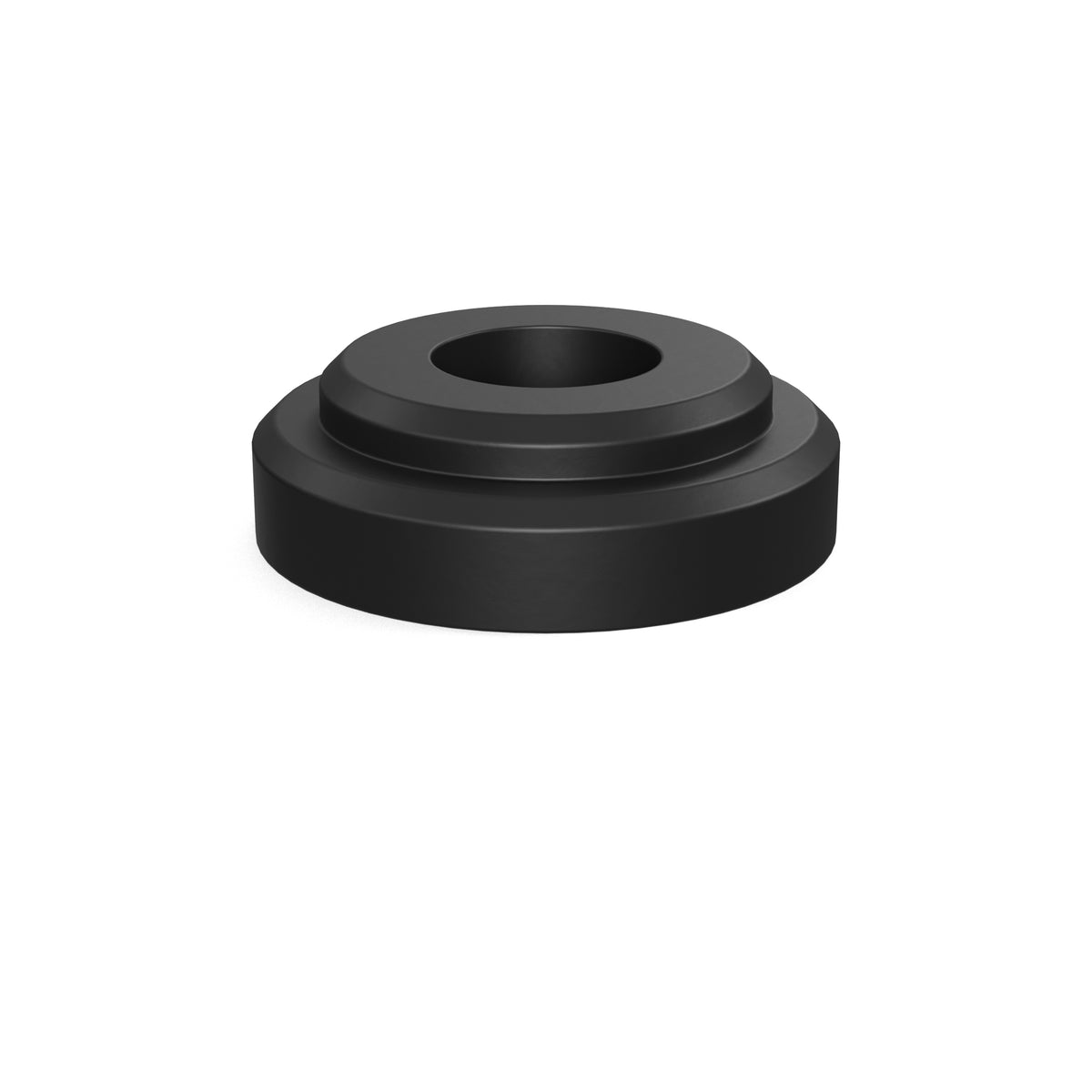

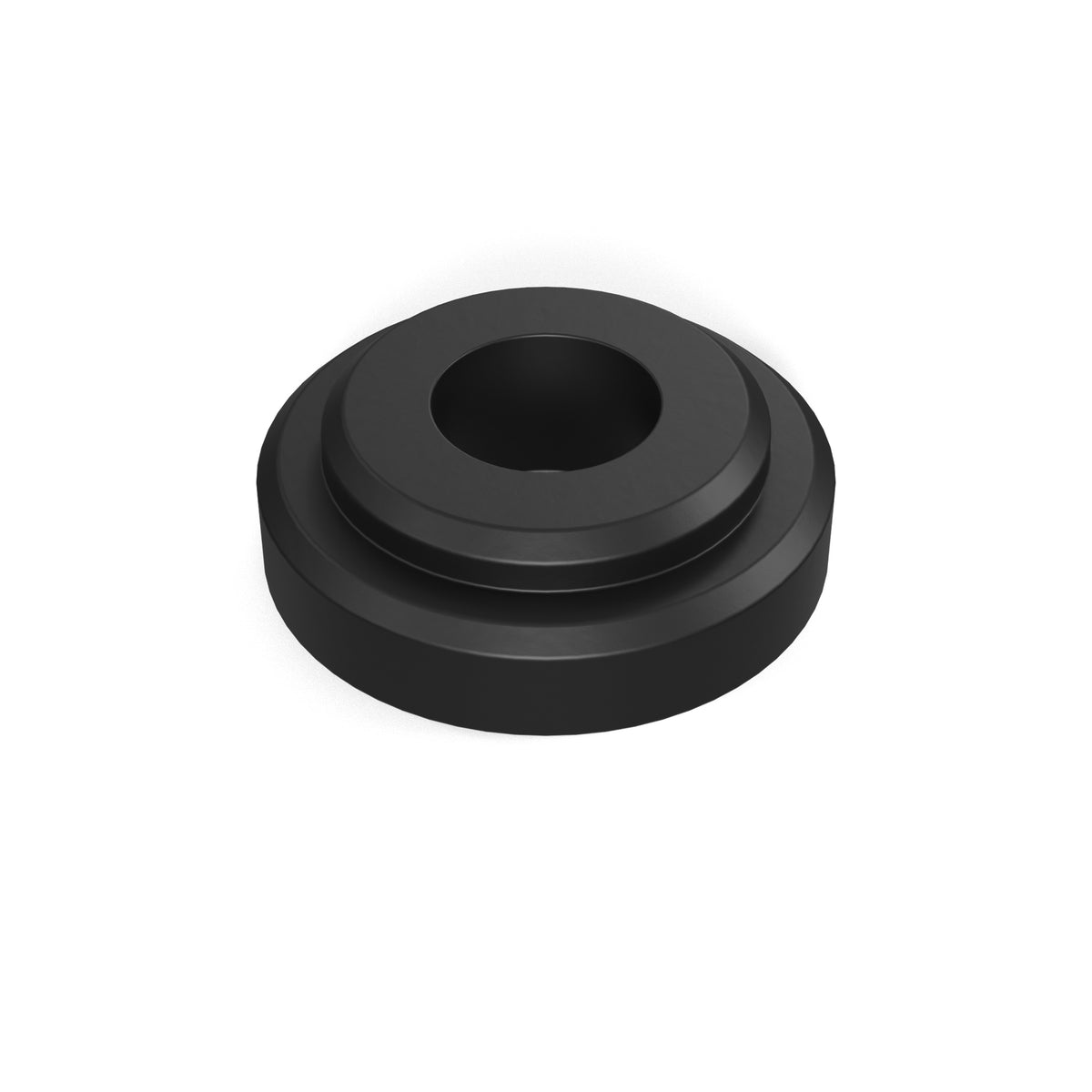

Sorbothane Vibration Isolation Bushing (.28"ID-.72"OD-.22"Thick) - 12 Pack

IsolateitSKU: 0576170-30-12

Duro - Durometer (30=Softest 70 =Firmest): 30
Price:
Sale price$23.95

Description

Sorbothane vibration isolators are versatile spacers that can be used as feet, stops, and protectors in many applications. The unique Sorbothane urethane is a durable, resilient, polymer that provides outstanding vibration isolation and non-skid properties. Sorbothane isolators help absorb impact and noise and have excellent resistance to aging; they will not harden or crack over time. They feature a smooth, clean, black raw Sorbothane surface.

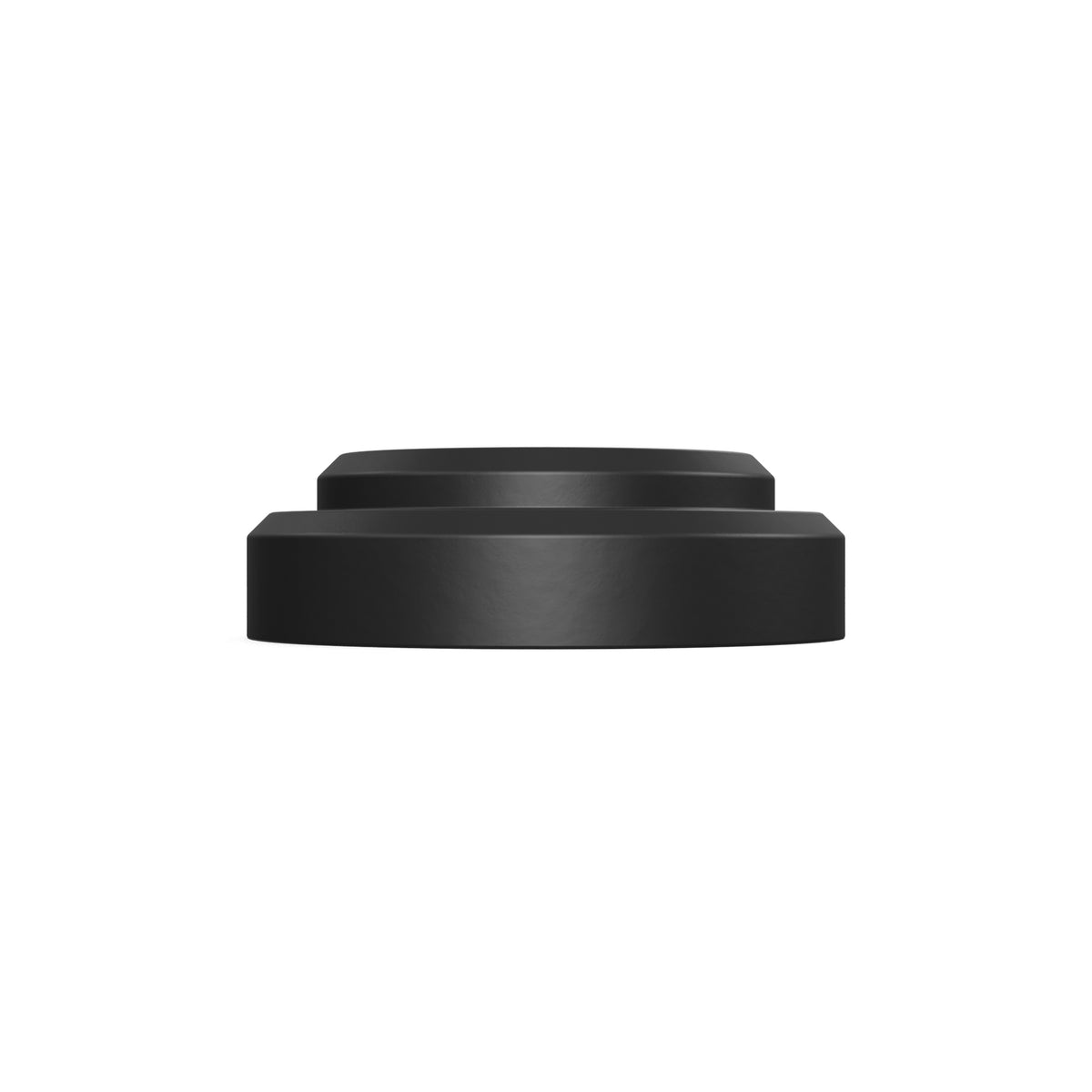

These washers feature a short beveled shoulder allowing for them to self-center in mounting holes. This shoulder also enables additional compression flexibility when using them as a pad under equipment.


Note on how our part numbers work:

Using part number 0576170-70-10 for the 0.72" OD 0.28" ID 0.22" thick Isolation Bushing as an example, the first part, 0576170, corresponds to the product and differs based on the measurements and product type. The middle part, 70, refers to the durometer. The end, 10, is used by our manufacturer and means that the product's color is black. All IsolateIT products are black, so IsolateIT part numbers do not end in 10. Instead, the end of the part number refers to the quantity, such as 4 for a 4-pack.

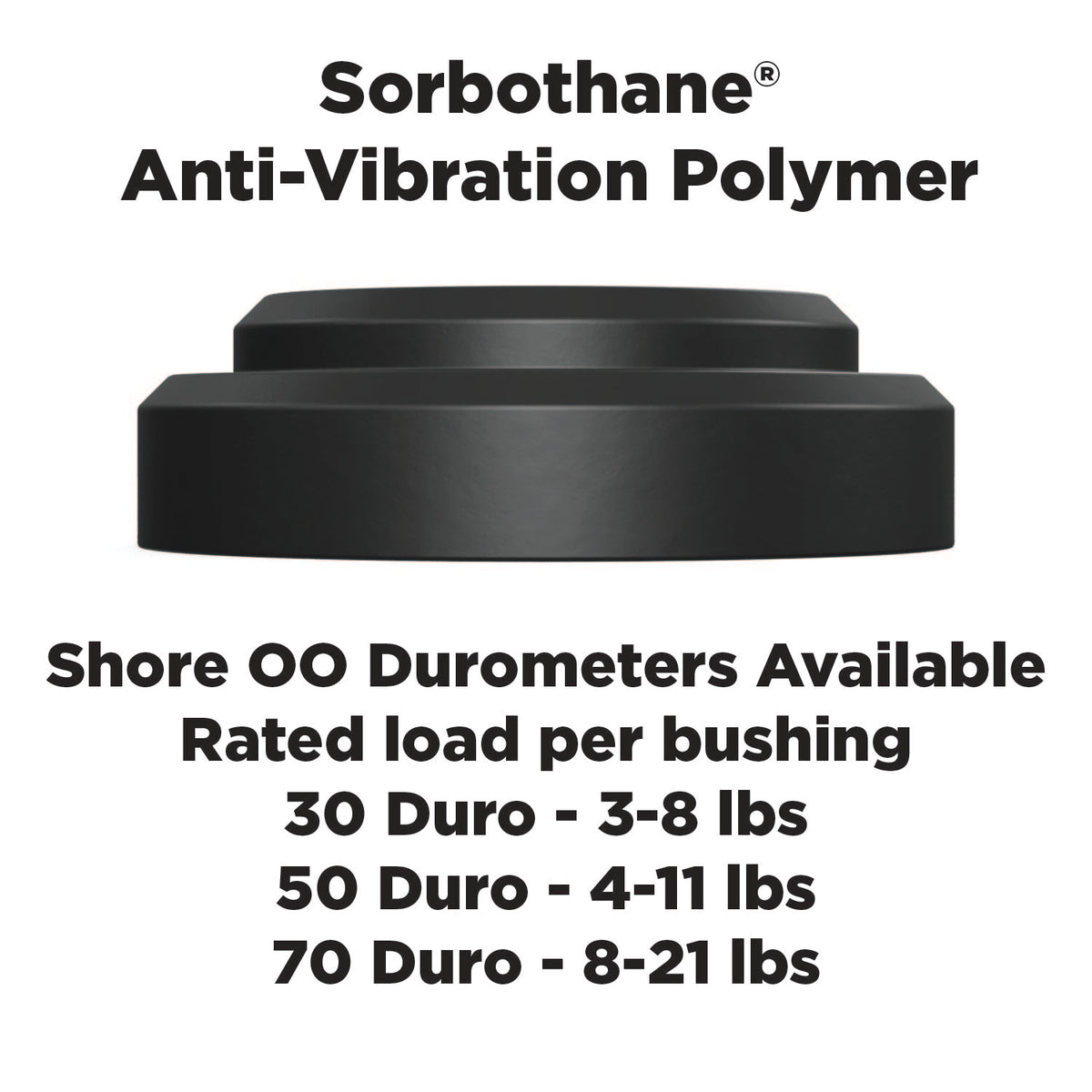

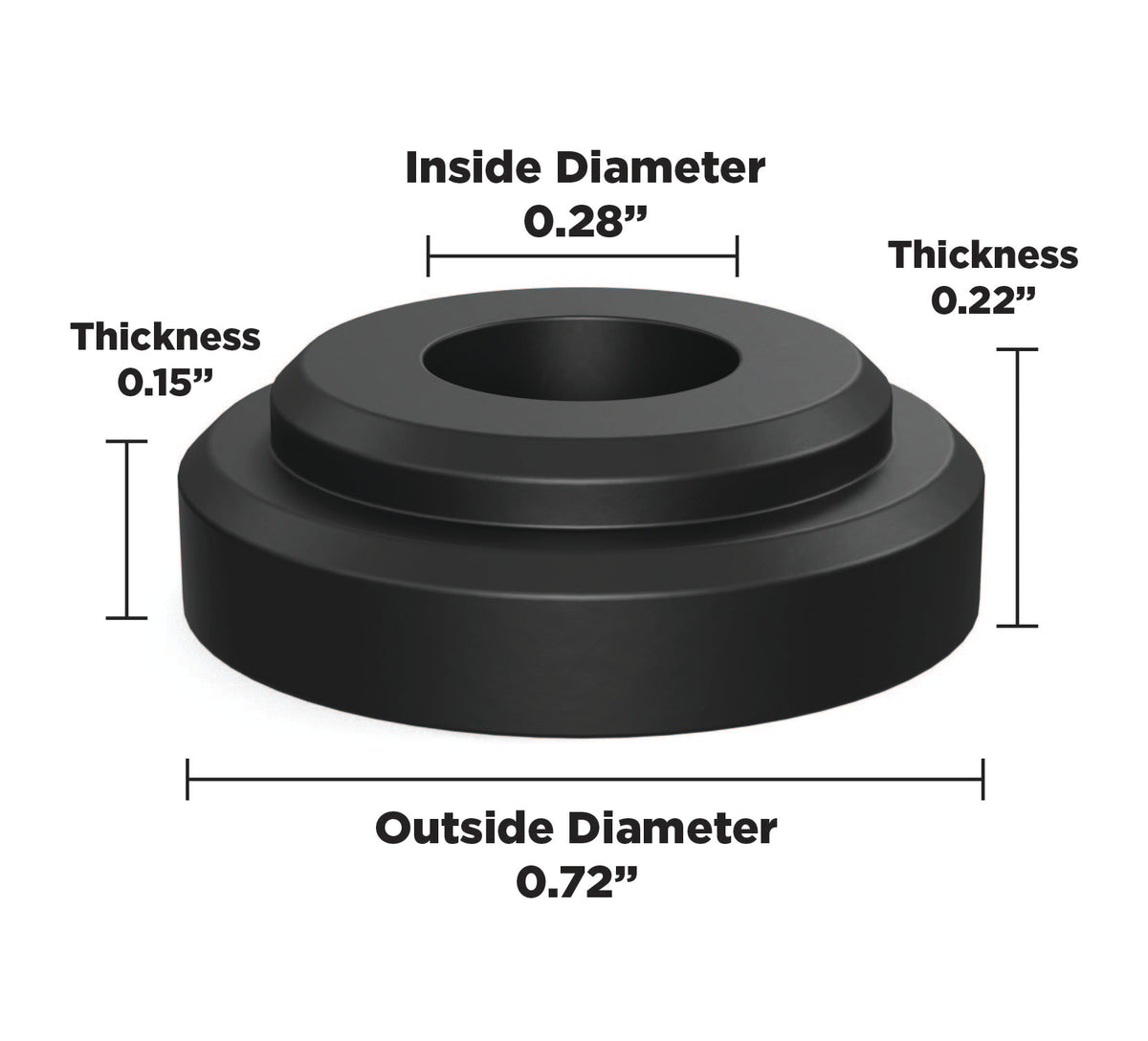

Sorbothane Part Number Isolate It! Part Number Duro / Durometer Total Diameter Shank Diameter Thickness minus shank Inside / Opening Diameter Total thickness including shank Rated Load Per bushing # of unit per pack
0576170-30-10 0576170-30-12 30 0.72” 0.5” 0.15” 0.28” 0.22” 3-8lbs 12
0576170-50-10 0576170-50-12 50 0.72” 0.5” 0.15” 0.28” 0.22” 4-11lbs 12
0576170-70-10 0576170-70-12 70 0.72” 0.5” 0.15” 0.28” 0.22” 8-21lbs 12
